Special Tools

Special tools and workshop equipment required

• Bracket for Engine 10-222 A/1
• Cooling System Charge Unit VAS 6096
• Cooling System Tester V.A.G 1274 B
  Fig 1: Identifying Cooling System Tester V.A.G 1274 B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter V.A.G 1274/8
  Fig 2: Identifying Adapter VAG 1274/8

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Adapter V.A.G 1274/9
  Fig 3: Identifying Adapter V.A.G 1274/9

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Hose Clip Pliers VAS 6340
  Fig 4: Identifying Hose Clamp Pliers VAS 6340

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

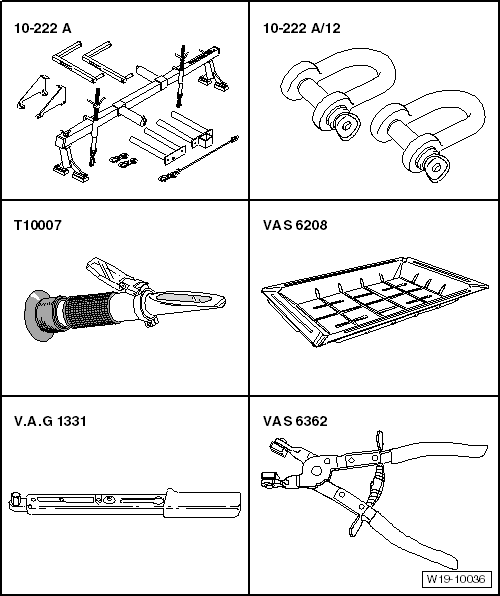

Fig 5: Identifying Special Tools -- Engine Support And Accessories

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10-222 A
• Shackle 10-222 A/12
• Refractometer T10007
• Drip Tray for VAS 6100 VAS 6208
• Torque Wrench (5-50 Nm) V.A.G 1331
• Hose Clip Pliers VAS 6362
