Battery Jump Start Terminal Overview

Battery Jump Start Terminal Overview

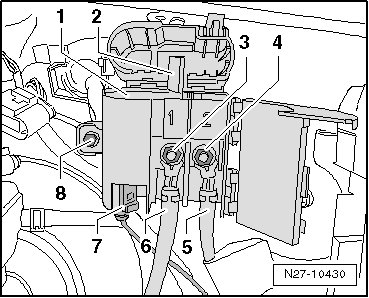

Vehicles with battery in luggage compartment have an additional outside starter point in the engine compartment, left side. This consists of Terminal 30 Wire Junction (TV2) and Suppressor (C24).






1 Suppressor (C24)
2 Battery Jump Start Terminal
3 Mounting nut (collar nut) for terminal 30 wire to Starter (B) and to threaded connection (30) on the E-box (tightening specification: 15 Nm).
4 Mounting nut (collar nut) for terminal 30 wire from Battery Interrupt Igniter (N253) in luggage compartment, right side
5 Terminal 30 wire from Battery Interrupt Igniter (N253) in luggage compartment, right side
6 Terminal 30 wire to starter and to threaded connection (30) on E-box.
7 Suppressor connector
8 Bolt (tightening specification: 9 Nm)
