Transmission To Engine Bolts, 5.0L TDI Diesel Engine

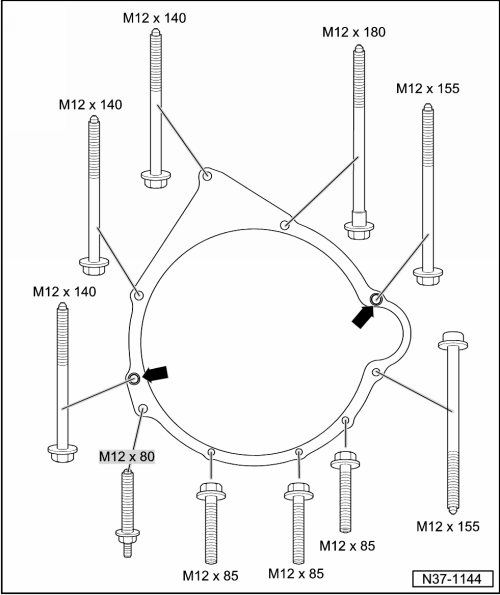

Fig 1: Torque Specifications (Vehicles With V10 TDI)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Alignment Bushings -arrows-

Bolt	Bolt Location by "Clock"	Tightening Specifications
M12 x 140	11:30	80 Nm
M12 x 180	12:30
M12 x 155	2:00, on starter	65 Nm
	3:30, on starter
M12 x 85	4:00	80 Nm
	5:00
	7:00
M12 x 80 with bracket	8:00
M12 x 140	8:30
	10:00
M10 x 1 x 17	Drive plate to converter, Quantity. 6	85 Nm
