Transmission To Engine Bolts, 3.0L TDI Diesel Engine

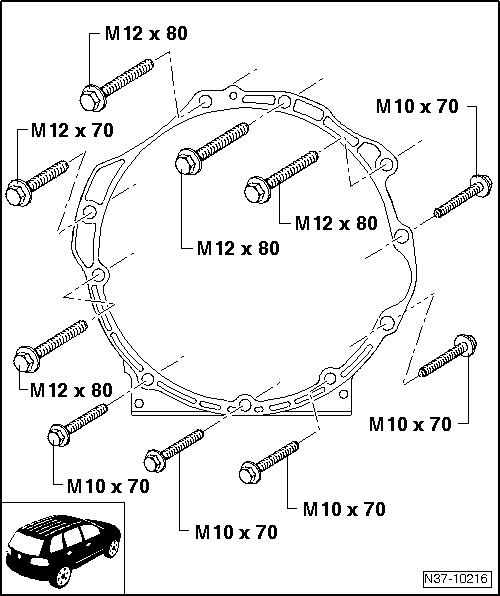

Fig 1: Transmission To Engine Bolts, 3.0L TDI Diesel Engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt	Bolt Location by "Clock"	Tightening Specifications
M12 x 80	11:30	80 Nm
	12:30
	2:00, with alignment bushing
M10 x 70	3:00, on starter	65 Nm
	4:00, on starter
	5:00	45 Nm
	6:00
	7:00
M12 x 80	8:30, with alignment bushing	80 Nm
M12 x 70	9:30
M10 x 1 x 17	Drive plate to converter, Quantity: 6	85 Nm
