Steering Wheel

Removing

-- Remove driver airbag unit. Refer to DRIVER AIRBAG

-- Turn steering wheel -1- to center position (wheels point straight ahead).

-- Remove bolt -2- and pull steering wheel off of steering column.

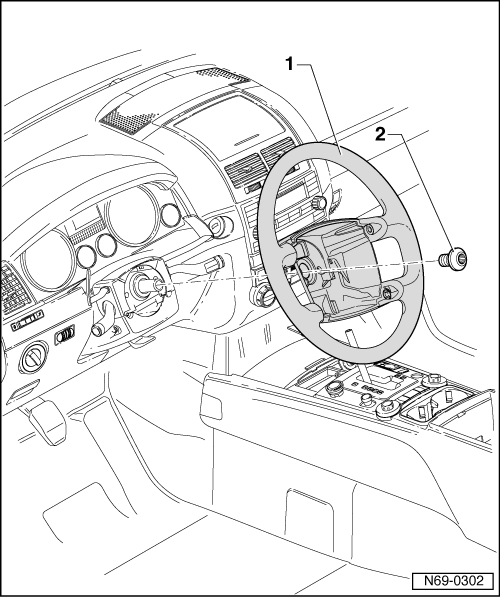

Fig 1: Identifying Bolt & Pull Steering Wheel, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

-- Place steering wheel onto steering column.

-- The center markings on the steering wheel and steering column must align.

-- The coil spring connector socket and pin must be positioned in the openings provided at the base of the steering wheel.

-- Fasten steering wheel with bolt -2- ; tightening specification is 50 Nm.

-- Mark the bolt with a center punch.

-- Bolt can be used five times.

Fig 2: Identifying Bolt & Pull Steering Wheel, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
