Left High-Intensity Gas Discharge Lamp Control Module Connector End Views (J343, J667, T14i)

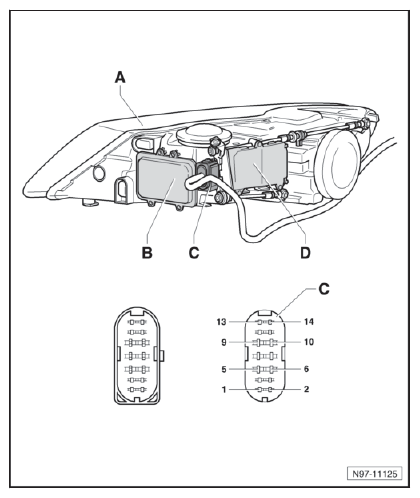

Fig 1: Left High-Intensity Gas Discharge Lamp Control Module Connector End Views (J343, J667, T14i)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A	Headlamp
B	Left High-intensity Gas Discharge Lamp Control Module -J343-
D	Left Headlamp Power Output Stage J667
C	14-Pin Connector -T14i-
