Lane Change Assistance Control Module Connector End Views (J770, J769, T12v)

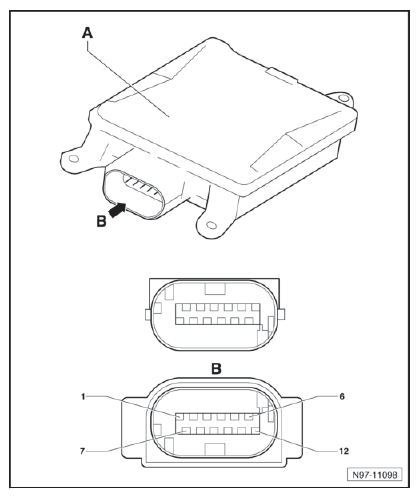

Fig 1: Lane Change Assistance Control Module Connector End Views (J770, J769, T12v)
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A
Lane Change Assistance Control Module J769 Connector
B
12-pin connector -T12v-
