Instrument Cluster Control Module Connector End Views (J285, T32b, T32a)

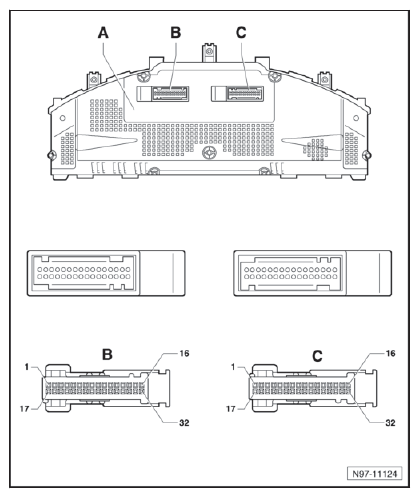

Fig 1: Instrument Cluster Control Module Connector End Views (J285, T32b, T32a)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A	Instrument Cluster Control Module
B	32-pin connector -T32b-, green
C	32-pin connector -T32a-, blue
