Heater Control Module Connector End Views (J162, T6m, T2m)

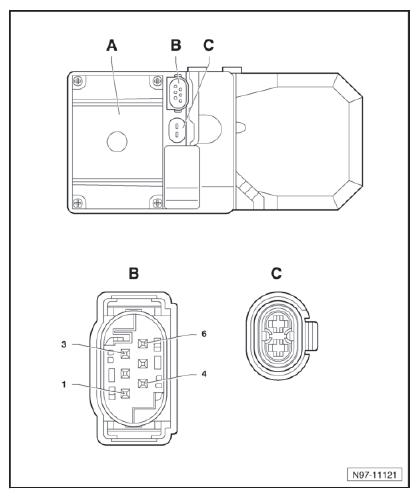

Fig 1: Heater Control Module Connector End Views (J162, T6m, T2m)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A	Heater Control Module -J162-
B	6-pin connector -T6m-
C	2-pin connector -T2m-
