Antenna Selection Control Module Connector End Views (J515, T3y)

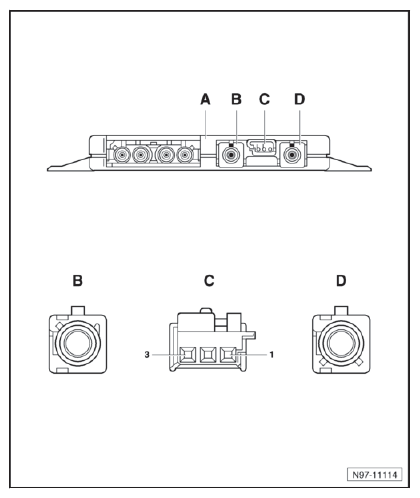

Fig 1: Antenna Selection Control Module Connector End Views (J515, T3y)
G10539438Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Antenna Selection Control Module J515
B Connector Antenna
C 3-pin connector -T3y-
D Connector Antenna
