Airbag Control Module Connector End Views (J234, T75)

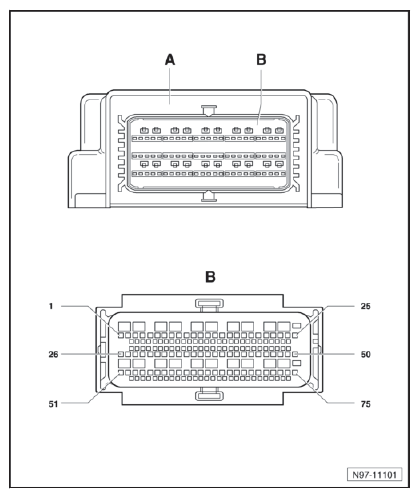

Fig 1: Airbag Control Module Connector End Views (J234, T75)
G10539418Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
A Airbag Control Module -J234-
B 75-pin connector -T75-
