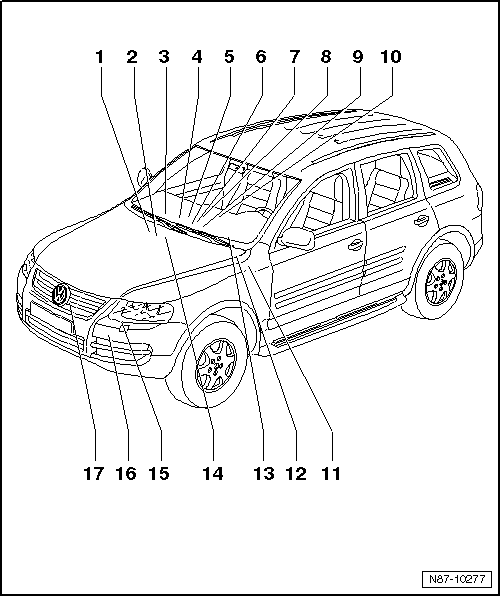

CLIMATRONIC Electrical Components Overview
WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- High Pressure Sensor -G65-
- Removing and installing, refer to HIGH PRESSURE SENSOR -G65- .
- Fresh Air Intake Duct Temperature Sensor -G89-
- Removing and installing, refer to FRESH AIR INTAKE DUCT TEMPERATURE SENSOR -G89- .
- Front Bitron Blower Regulation Sensor -G462-
- Removing and installing, refer to FRONT BITRON BLOWER REGULATION SENSOR -G462- .
- Front Bitron Blower Regulation Motor -V305-
- Removing and installing, refer to FRONT BITRON BLOWER REGULATION MOTOR -V305- .
- Sunlight Photo Sensor -G107 - or Sunlight Photo Sensor 2 - G134-
- Removing and installing, refer to SUNLIGHT PHOTO SENSOR -G107- OR SUNLIGHT PHOTO SENSOR 2 -G134- .
- Right Footwell Vent Temperature Sensor -G262-
- Removing and installing, refer to RIGHT FOOTWELL VENT -G262- .
- Evaporator Temperature Sensor -G308-
- Removing and installing, refer to EVAPORATOR -G308- OR EVAPORATOR VENT -G263- .
- Right Front Upper Body Outlet Temperature Sensor -G386-
- Removing and installing, refer to RIGHT FRONT UPPER BODY VENT -G386- .
- Left Front Upper Body Outlet Temperature Sensor -G385-
- Removing and installing, refer to LEFT FRONT UPPER BODY VENT -G385- .
- Climatronic Control Module -J255-
- Climatronic Control Module -J255 -, A/C Control Head -E87- and Instrument Panel Interior Temperature Sensor -G56- with Interior Temperature Sensor Fan -V42- are one component that cannot be disassembled.
- Removing and installing, refer to MANUAL A/C SYSTEM AND CLIMATRONIC CONTROL MODULE -J255- .
- Coolant Pump -V36-
- Only on vehicles with gasoline engine without auxiliary heater.
- Air Quality Sensor -G238-
- Removing and installing, refer to AIR QUALITY SENSOR -G238- .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and installing, refer to LEFT FOOTWELL VENT -G261- .
- Headliner Interior Temperature Sensor -G86-
- Component location: in left plenum chamber at E-box.
- Only on vehicles with a solar panel for the sunroof. Fresh air blower switches on at temperatures above 15 °C (59 °F) and off again at temperatures below 10 °C (50 °F).
- Removing and installing, refer to HEADLINER INTERIOR TEMPERATURE SENSOR -G86- .
- A/C Compressor Regulator Valve -N280-
- The A/C Compressor Regulator Valve and the A/C compressor cannot be disassembled.
- A/C compressor, removing and installing, refer to COMPRESSORS .
- Refrigerant Temperature Sensor -G454-
- Removing and installing, refer to REFRIGERANT TEMPERATURE SENSOR -G454- .
- Outside Air Temperature Sensor -G17-
- Removing and installing, refer to OUTSIDE AIR TEMPERATURE -G17- .
