Windshield Washer Fluid Level Sensor -G33-

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Removal

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove tank for windshield washer system and headlamp cleaning system. Refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .

-- Disconnect harness connector -1- and pull Windshield Washer Fluid Level Sensor out of its rubber seal.

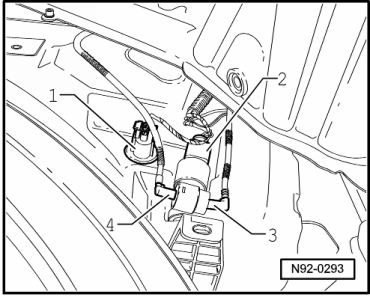

Fig 1: Identifying Multi-Pin Harness Connector Components, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation

Install in reverse order of removal. Note the following:

-- Bleed headlamp washer system after completing assembly work. Refer to HEADLAMP WASHER SYSTEM, BLEEDING .
