Vehicle Electrical System Control Module -J519-

WARNING: This page is about a different car, the 2007 Volkswagen Touareg, 2006 Volkswagen Touareg, 2005 Volkswagen Touareg, and 2004 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If control module is being replaced, first perform work procedure VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, CODING .

Removal

-- Turn off the ignition and all electric consumers and remove the key.

-- Remove lower storage compartment on driver's side. Refer to Removal and Installation .

NOTE:

The number of multi-pin harness connectors -1- at Vehicle Electrical System Control Module can deviate from the illustration depending on vehicle equipment.

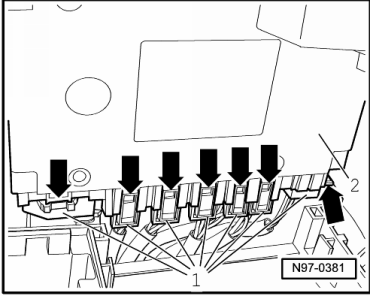

Fig 1: Identifying Vehicle Electrical System Control Module J519 & Harness Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release locking mechanisms of multi-pin harness connectors -arrows- and disconnect multi-pin harness connectors -1- from Vehicle Electrical System Control Module -2-.

-- Remove Vehicle Electrical System Control Module -2- with wires connected to rear side out of bracket.

-- Release locking mechanisms of multi-pin harness connectors -arrows- and disconnect multi-pin harness connectors -1- from Vehicle Electrical System Control Module -2-.

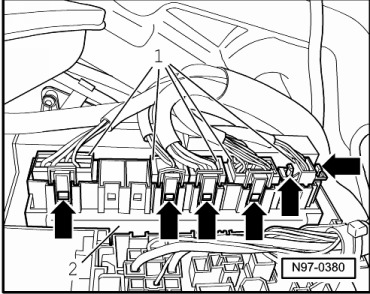

Fig 2: Identifying Vehicle Electrical System Control Module & Multi-Pin Harness Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove Vehicle Electrical System Control Module from vehicle.

Installation

Install in reverse order of removal.
