Left Powertrain Mount And Bracket: Installing

WARNING: This page is about a different variant/trim than selected.

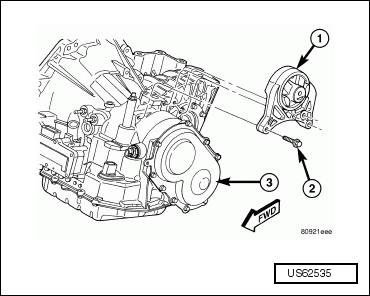

Fig 1: Identifying Powertrain Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the powertrain mount (1) to the transaxle (3).

-- Install the powertrain mount bolts (2) to the transaxle (3).

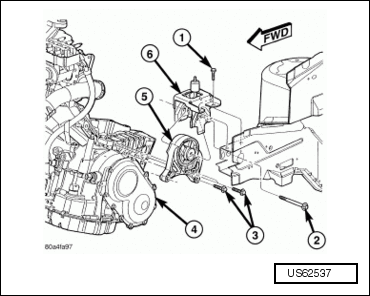

Fig 2: Identifying Left Powertrain Mount And Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the powertrain mount bracket (6) and bolts (1), if required.

-- Install the powertrain mount through bolt (2).

-- Install the powertrain mount through bolt access cover.

-- Install the front powertrain mount through bolt.

-- Install the left front wheel.

-- Lower the vehicle.
