Rear Engine Mount: Installing

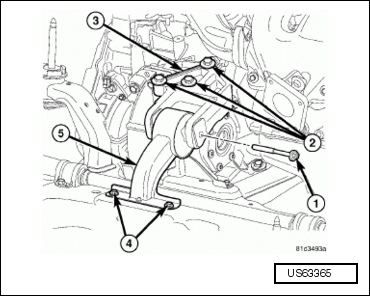

Fig 1: Identifying Engine Mount Through Bolt, Engine Mount Bracket And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the engine mount (5).

-- Install the engine mount bolts (4) and tighten the bolts to 100 Nm (74 ft lbs).

-- Install the engine mount through bolt (1). Tighten the bolt to 50 Nm (37 ft lbs).

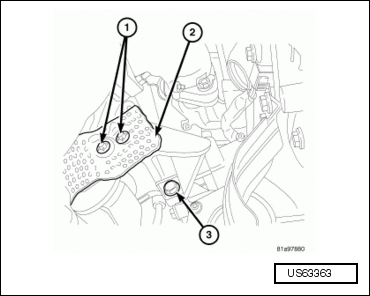

Fig 2: Identifying Engine Mount Heat Shield And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the engine mount heat shield (2) and bolts (1). Tighten the bolts to 11 Nm (8 ft lbs).

-- Remove the adjustable jack from under the engine, if necessary.

-- Lower the vehicle.
