Electronic Damping Control Module

WARNING: This page is about a different car, the 2011 Volkswagen Eos, 2010 Volkswagen Eos, 2009 Volkswagen Eos, 2008 Volkswagen Eos, and 2007 Volkswagen Eos. However, it is still accessible from the selected car via links, so may be relevant.

Removing

NOTE:

Component location: Behind the left side luggage compartment trim panel.

-- Switch off all electrical consumers.

-- Remove the ignition key.

-- Remove the left side trim in the luggage compartment. Refer to Removal and Installation .

-- Release and disconnect the connector.

-- Slightly bend the tabs on the bracket -arrows- upward and slide the electronic damping control module -J250- in -direction of arrow- out of the bracket.

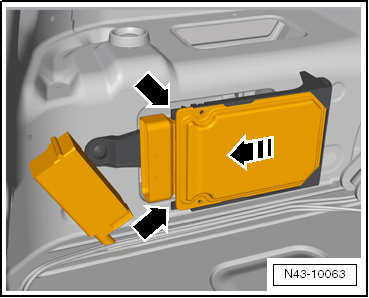

Fig 1: Identifying Removal Of Electronic Damping Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing

Installation is the reverse of removal, with special attention to the following:

-- Slide the electronic damping control module far enough into the bracket so that the tabs -arrows- audibly latch into place.

Fig 2: Identifying Installation Of Electronic Damping Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-- Perform a basic setting on the adaptive chassis DCC. Refer to ADAPTIVE CHASSIS DCC, BASIC SETTING .
