Convertible Top Control Module
WARNING: This page is about a different car, the 2011 Volkswagen Eos, 2010 Volkswagen Eos, 2009 Volkswagen Eos, 2008 Volkswagen Eos, and 2007 Volkswagen Eos. However, it is still accessible from the selected car via links, so may be relevant.

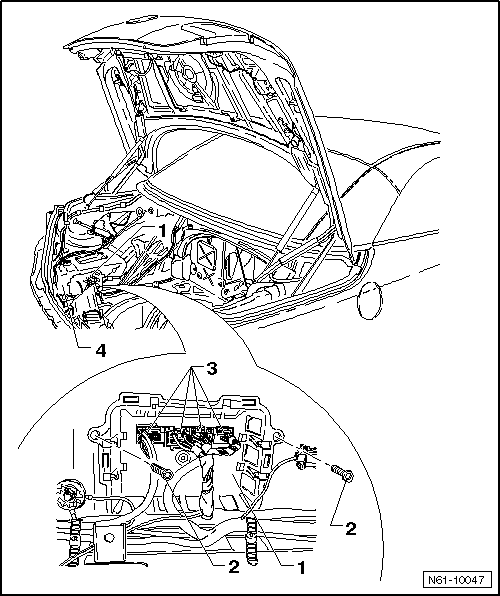

-- Remove luggage compartment side trim. Refer to Removal and Installation
-- Disconnect the connectors -3-.
-- Remove the bolts -2-.
-- Remove control module -1- from longitudinal member -4-.
Tighten screws -2- : 3 Nm.
