Timing Cover

Upper Timing Chain Cover Bolt Tightening Sequence





- Tighten the bolts in 2 passes in sequence - 1 through 5 -:

1 - Tighten the bolts by hand

2 - Tighten the bolts to 9 Nm

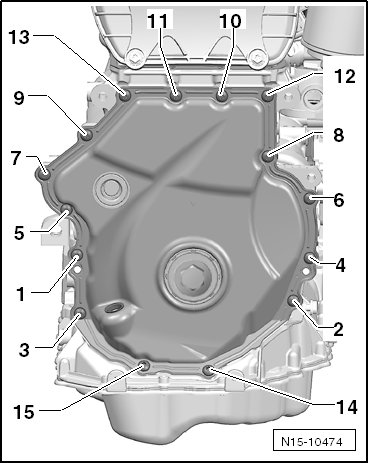

Lower Timing Chain Cover Bolt Tightening Sequence





- Tighten the bolts in 2 passes in sequence - 1 through 15 -:

1 - Tighten the bolts to 8 Nm

2 - Tighten the bolts an additional 45° (1/8) turn
