Left Vent Temperature Sensor G150







Left Vent Temperature Sensor G150

Removing

- Remove the instrument cluster.

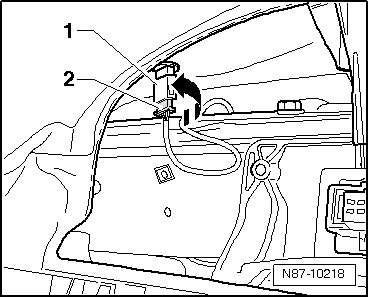

- Disconnect the - 2 - on the left vent temperature sensor connector.






- Rotate left vent temperature sensor - 1 - 90° and remove from instrument panel.

Installing

- Install in reverse order of removal.
