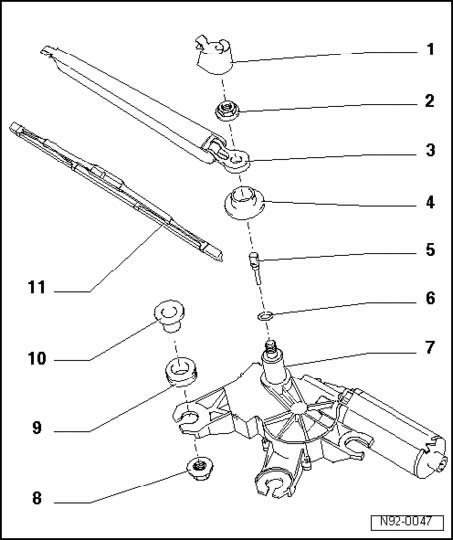

Rear Window Wiper System Assembly Overview

Rear Window Wiper System Assembly Overview







1 - Cap
2 - Nut SW 13
- 12 Nm
3 - Wiper arm
- Adjusting park position
4 - Gasket
5 - Spray nozzle
- Adjusting
6 - Sealing ring
7 - Rear window wiper motor V12
8 - M6 nut with washer
- 8 Nm
9 - Rubber ring
10 - Spacer
11 - Aero windshield wipers
