Fluid Pressure Sensor/Switch: Locations

Automatic Transmission Hydraulic Pressure Sensor 1 G193 and Automatic Transmission Hydraulic Pressure Sensor 2 G194 - 09G, 6 Speed A/T FWD
This sensor is not installed in all transmissions.

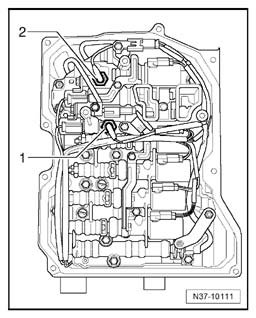

Location:

The automatic transmission hydraulic pressure sensor 1 G193 -1- and the automatic transmission hydraulic pressure sensor 2 G194 are installed in the valve body.
