Vehicle Electrical System Control Module Connector End View (J519)

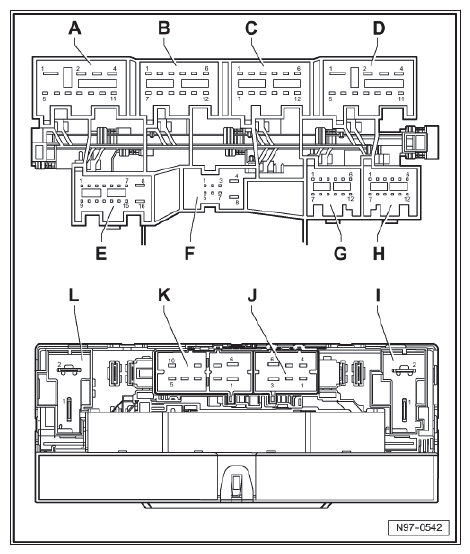

Fig 1: Vehicle Electrical System Control Module Connector End View (J519)
G10377816
A = 11-Pin Connector:
1 Terminal 30
2 Right Low Beam Headlamp
3 Right High Beam Headlamp
4 Right Front Fog Lamp
5 Not used
6 Right Front Turn Signal Lamp
7 Parking Lamp
8 Not used
9 Ground
10 Fuel Pump (FP) 2 Relay
11 Power Supply Relay (terminal 50)
B = 12-Pin Connector:
1 Right Back-Up Lamp
2 Not used
3 Not used
4 Not used
5 Left Brake/Taillamp
6 Not used
7 Left and Right Front Entry Light
8 Not used
9 Right Rear Taillamp
10 Right Rear Turn Signal Lamp
11 Front Interior Light
12 Terminal 58d
C = 12-Pin Connector:
1 Driver's Heated Seat Control Module, Front Passenger's Heated Seat Control Module
2 Left Brake Lamp
3 Not used
4 Not used
5 Not used
6 Not used
7 Not used
8 License Plate Lights
9 High-mount Brake Light
10 Left Taillamp
11 Rear Left Parking Lamp
12 Left Backup Lamp
D = 11-Pin Connector:
1 Terminal 30 (B+)
2 Left Front Fog Lamp
3 Left High Beam Lamp
4 Left Low Beam Headlamp
5 Ground
6 Not used
7 Power Supply Relay (terminal 15)
8 Not used
9 Not used
10 Right Parking Lamp
11 Left Front Turn Signal Lamp
E = 16-Pin Connector:
1 Light Switch Terminal 58
2 Brake Light Switch
3 Not used
4 Not used
5 Not used
6 Rear Fog Lamp Switch
7 Clutch Position Sensor (only models with manual transmission), Multi-Function Transmission Range (TR) Switch (only models with automatic transmission)
8 Light Switch Terminal 56
9 Not used
10 Not used
11 Not used
12 Not used
13 Not used
14 Light Switch (automatic headlamps)
15 Not used
16 Light Switch (Daytime Running Lights)
F = 8-Pin Connector:
1 Power Supply Relay (terminal 50)
2 Power Supply Relay (terminal 15) (B+)
3 Windshield Wiper Motor
4 Generator (GEN)
5 Front Hood Switch
6 Back-Up Light Switch
7 Terminal 30
8 Ground
G = 12-Pin Connector:
1 Steering Column Electronic Systems Control Module Terminal 50
2 Emergency Flasher
3 Not used
4 Instrument Panel Illumination Dimmer Switch
5 Not used
6 Not used
7 Comfort System CAN-Bus Low
8 Comfort System CAN-Bus High
9 Emergency Flasher Switch
10 Instrument Panel Illumination Dimmer Switch
11 Steering Column Electronic Systems Control Module Terminal 15
12 Instrument Panel Illumination Dimmer Switch
H = 12-Pin Connector:
NOTE: Pin Connector H not used
I = Double Connector:
1 Fuse Terminal 75
2 Terminal 75x
J = 6-Pin Connector:
1 Fuse, Rear Window Wiper Motor
2 Rear Window Wiper Motor
3 Terminal 30
4 Windshield and Rear Window Washer Pump, Rear Window Wiper Motor
5 Ground
6 High Tone Horn, Low Tone Horn
K = 10-Pin Connector:
1 Heated Rear Window
2 Not used
3 Not used
4 Not used
5 Fuse Terminal 30a
6 Heated Rear Window Fuse
7 Not used
8 Not used
9 Not used
10 Terminal 30g
L = Double Connector
1 Fuse Terminal 15 Interior
2 Terminal 15 Interior
