Steering Column Electronic Systems Control Module Connector End View (J527)

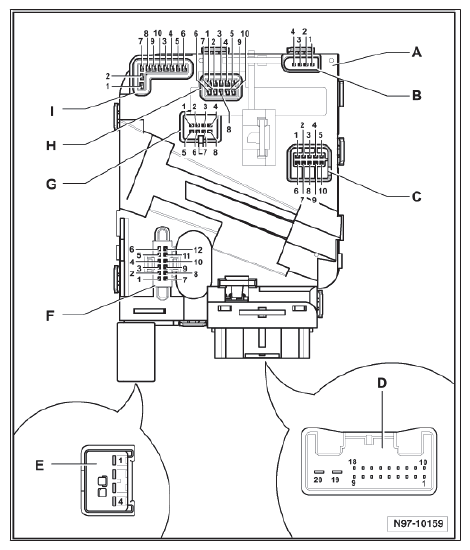

Fig 1: Steering Column Electronic Systems Control Module Connector End View (J527)
G10377806
A Steering Column Electronic Systems Control Module -J527- Connector
B = Airbag Control Module Connector:
1 Airbag 1 -
2 Airbag 1 +
3 Airbag 2 +
4 Airbag 2 -
C = Turn Signal and Cruise Control System Connector:
1 Power Supply CCS (terminal 15)
2 CCS OFF
3 CCS Res (+), Set (-)
4 CCS ON/OFF
5 Ground CCS
6 Illumination CCS (terminal 58)
7 High Beam Switch
8 High Beam
9 Turn Signal
10 Ground Turn Signal
D = 20-Pin Connector:
1 Not used
2 Not used
3 Not used
4 Not used
5 Not used
6 Not used
7 Not used
8 Not used
9 Not used
10 Not used
11 CAN-Bus Network, Diagnostic, Powertrain, CAN-Bus Low
12 CAN-Bus Network, Diagnostic, Powertrain, CAN-Bus High
13 CCS Output
14 CAN-Bus Network, Diagnostic, Comfort System, CAN-Bus Low
15 CAN-Bus Network, Diagnostic, Comfort System, CAN-Bus High
16 Multi-Function Transmission Range (TR) Switch (only automatic transmission or direct shift gearbox (DSG))
17 Terminal 15
18 Terminal 50
19 Terminal 30 (B+)
20 (Terminal 31)
E= 4-Pin Connector:
1 Airbag 1 -
2 Airbag 1 +
3 Not used
4 Not used
F = Connector Ignition/Starter Switch and Ignition Switch Key Lock:
1 Not used
2 Not used
3 Ignition Switch Key Lock On, Terminal 30
4 Ignition Switch Key Lock Ground
5 Not used
6 Not used
7 Output Ignition/Starter Switch Terminal 50
8 Output Ignition/Starter Switch Terminal 30
9 Output Ignition/Starter Switch Terminal S
10 Output Ignition/Starter Switch Terminal X
11 Output Ignition/Starter Switch Terminal P
12 Output Ignition/Starter Switch Terminal 15
G = Connector Wiper, Interval potentiometer and Multi-Function Indicator (MFI)
1 Signal Wiper switch
2 Ground Wiper
3 Not used
4 Not used
5 Signal MFI
6 Ground MFI, Interval potentiometer
7 Signal Intervals
8 Not used
H = Connector Steering Angle Sensor:
1 Light barrier 5
2 Light barrier 3
3 Light barrier 1
4 Power Supply 12 V
5 Power Supply 5 V
6 Light barrier 6
7 Light barrier 4
8 Light barrier 2
9 Ground
10 Light barrier 7
I = Spiral Spring Connector:
1 Not used
2 Not used
3 Airbag 1 +
4 Airbag 1 -
5 Airbag 2 +
6 Airbag 2 -
7 Ground for Spiral Spring, Multi-function Steering Wheel and Horn
8 Cruise control switched off, horn
9 LIN-Bus, steering wheel heating temperature sensor
10 Power Supply for Multi-function Steering Wheel (terminal 15)
