Rcd 310 Radio System, Golf Plus Overview

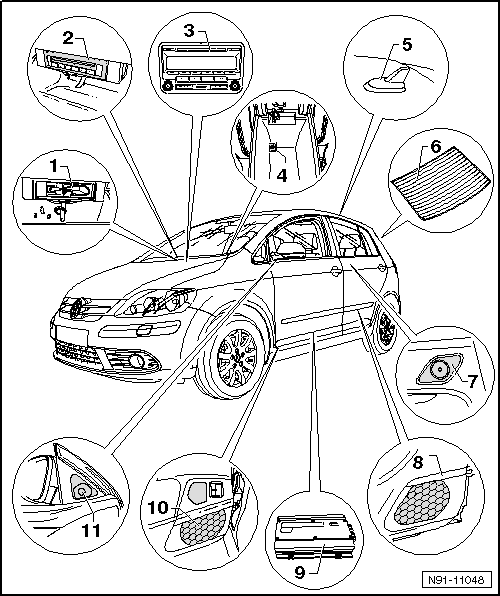

Fig 1: RCD 310 Radio System, Golf Plus Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Multimedia Control Module -J650-
- Installed in center console
- For additional information, see multi media system control module, refer to MULTIMEDIA CONTROL MODULE
- Optional installation of CD changer or multimedia system control module. Both systems are not available together because they both use the same installation location.
CD Changer -R41-
- 6-disc CD changer
- Installed in center console
- Additional information, refer to CD CHANGER
- Optional installation of CD changer or multimedia system control module. Both systems are not available together because they both use the same installation location.
Radio -R- (RCD 310)
- Removing and Installing, refer to RADIO UNITS AND RADIO NAVIGATION SYSTEM, GOLF PLUS
- Overview of harness connectors, refer to
- Electronic anti-theft system, refer to ELECTRONIC ANTITHEFT SYSTEM
External Audio Source Connection -R199-
- Installed in the storage compartment under the center armrest
Telephone, Navigation And Auxiliary Heater Remote Control Antenna -R66-
- Installed on rear of roof
- For additional information, refer to the Antenna Systems article.
Window Antenna
- Installed in the rear window, for radio reception with antenna diversity
- Antenna for digital radio reception, DAB, also optional
- For additional information, refer to ANTENNA
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in door trim of left and right rear doors
- For additional information, refer to SPEAKER SYSTEMS
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in door trim of left and right rear doors
- For additional information, refer to SPEAKER SYSTEMS
Digital Sound System Control Module -R12-
- Installed under left front seat
- For additional information, refer to SOUND SYSTEM AMPLIFIER
Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-, Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed in door trim of left and right front doors
- Midrange speakers are only installed in conjunction with sound system
- Midrange and bass speakers are installed as one unit.
- Only the bass speaker is installed here when there is no sound system. Midrange frequencies play through the bass and treble speakers.
- For additional information, refer to SPEAKER SYSTEMS
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors
- For additional information, refer to SPEAKER SYSTEMS
