Rear Window, Damaged

Removing

-- Protect body and interior from glass splinters.

-- Remove glass pieces from adhesive material.

-- Disconnect harness connectors for window defroster and window antenna.

-- Bond flange -1- all around with fabric reinforced adhesive tape.

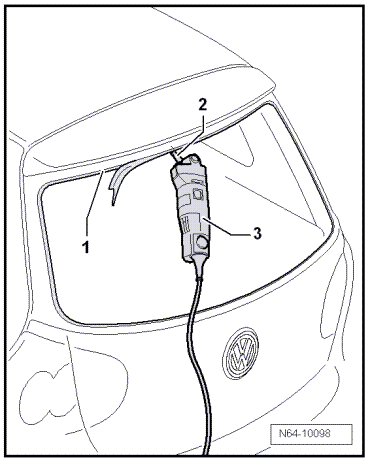

Fig 1: Cutting Through Adhesive Material (With Glass Residue) In Window Cutout With Electric Cutter V.A.G 1561 A And Cutting Blade V.A.G 1561/10

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut through adhesive material (with glass residue) in window cutout with electric cutter V.A.G 1561 A -3- and cutting blade V.A.G 1561/10 -2-.

Installing

Window, Preparing for Glazing WINDOW, UNDAMAGED, PREPARING FOR GLAZING

Window, New, Preparing for Glazing WINDOW WITH PRE-COATING, NEW, PREPARING FOR GLAZING

Window Flange, Preparing for Glazing WINDOW FLANGE, PREPARING FOR GLAZING

Installation Information INSTALLATION INFORMATION

Minimum Curing Time MINIMUM CURING TIME
