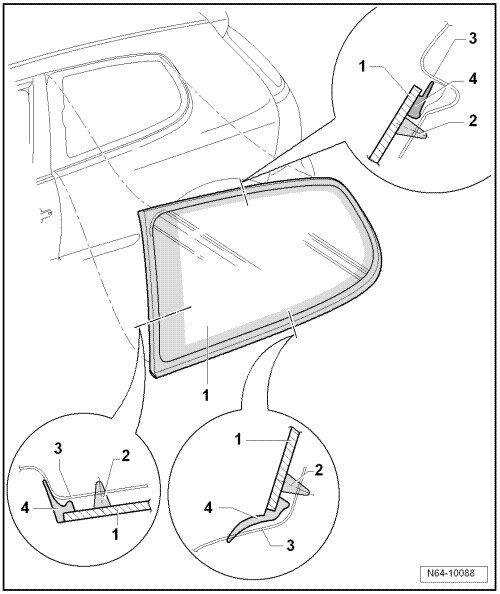

Rear Side Window Assembly Overview

Rear Side Window Assembly Overview





1 Side window

• Removing and Installing side window => [ Rear Side Window ] Rear Side Window

2 PUR adhesive sealant

• Bead cross section: Width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange).

• Minimum Curing Time => [ Minimum Curing Time ] Minimum Curing Time

3 Window flange

4 Seal with spacer

• Component part of side window.
