Transmission Input Speed Sensor

Transmission Input Speed Sensor

Removing

- Remove the valve body. Refer to => [ Valve Body ] Valve Body.

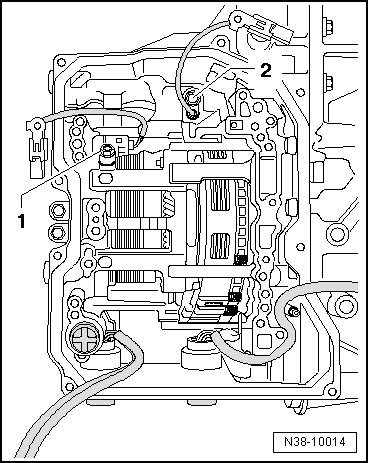

- Remove the bolt - 1 - for the transmission input speed (RPM) sensor (G182).





- Remove the sensor from the transmission.

Installing

Installation is performed in the reverse order of removal. Pay attention to the following:

- Press the sensor into the transmission until seated.

- Tighten bolt - 1 - for the transmission input speed (RPM) sensor, tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.

- Install the valve body. Refer to => [ Valve Body ] Valve Body.
