Sound System Amplifier

Radio, Multimedia, Navigation

Sound System Amplifier





Removing

Before starting repair work, perform the following:

- Switch off ignition, switch off all electrical consumers and remove ignition key.

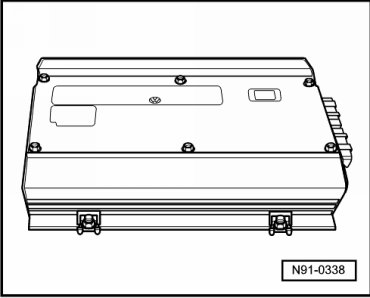

Amplifier is installed under front left seat.

- Move seat into uppermost and rearmost position.

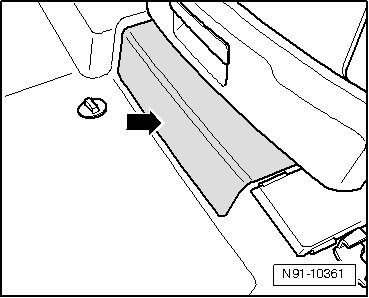

- Unclip cover - arrow - on seat at bottom.

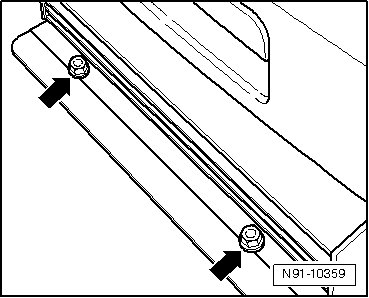

- Remove screws - arrows - on amplifier.





- Remove amplifier until you come to amplifier connectors.

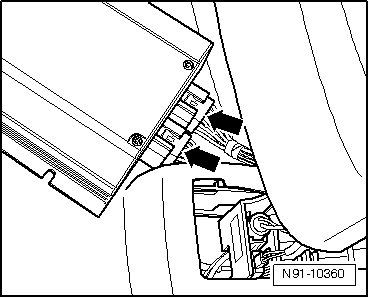

- Disengage connectors at amplifier - arrows - and remove them.





- Remove amplifier.

Installing

- Make sure that the amplifier slides into the notch on the bracket correctly when installing.

Remaining installation in reverse order of removal.
