Rear Lid Remote Lock Key Switch (E232)

Front Door Lamps and Switches

Rear Lid Remote Lock Key Switch (E232)

Removing:

- Switch ignition and all electrical consumers off and disengage the key or ignition switch in position 0 (ignition off).

- Remove door trim.

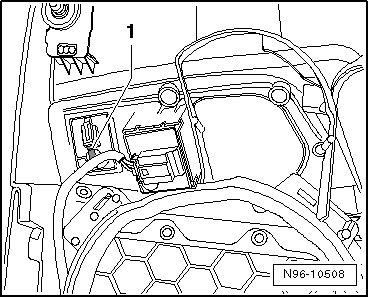

- Disconnect the connector - 1 -.

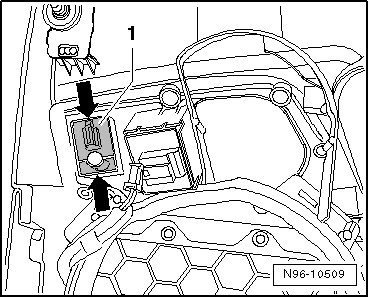

- Disengage retaining tabs - arrows - and remove Rear Lid Remote Lock Key Switch - 1 - from door trim.





Installing:

Install in reverse order of removal.
