Backrest Frame Assembly Overview

Front Seats

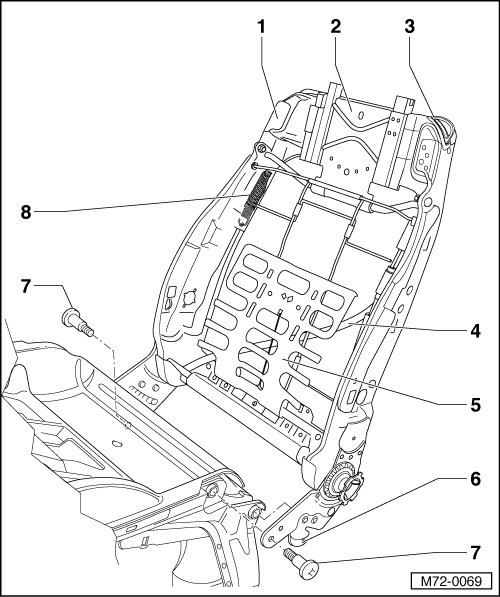

Backrest Frame Assembly Overview





1 Backrest Frame

2 Active Headrest Guide

3 Actuating Lever

4 Backrest Release Cable

• Removing => [ Backrest Release Control Cable from 05.2003 ] Front Seats

5 Lumbar Support Frame

• Removing => [ Lumbar Support Frame from 05.2003 ] Front Seats

6 Catches

7 Bolt

• 20 Nm

• Insert with locking fluid (D 000 600 A2)

8 Spring
