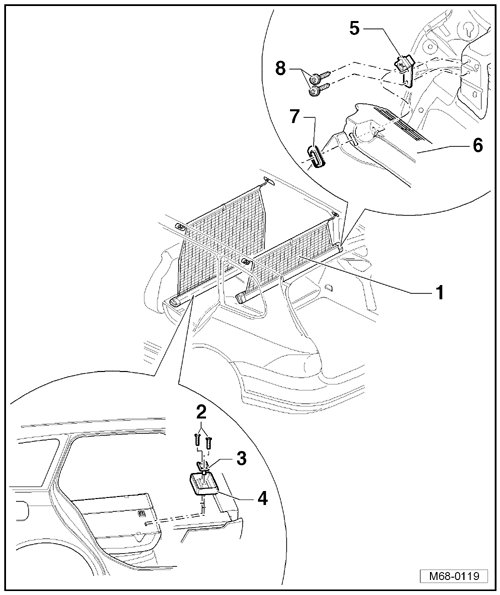

Screen Separator Mounting Components

Screen Separator Mounting Components






1 Screen Separator Wall

• Removing and installing, refer to => [ Screen Separator Wall ] Service and Repair

2 Bolt

• 8 Nm

3 Screen Separator Wall Mount

4 Mounting Piece

5 Screen Separator Wall Bracket

6 Luggage Compartment Side Trim, Wagon

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim

7 Collar

8 Bolt

• 8 Nm
