Front Passenger Door Control Module Connector End Views (J387, T32b, T16d, T20b)

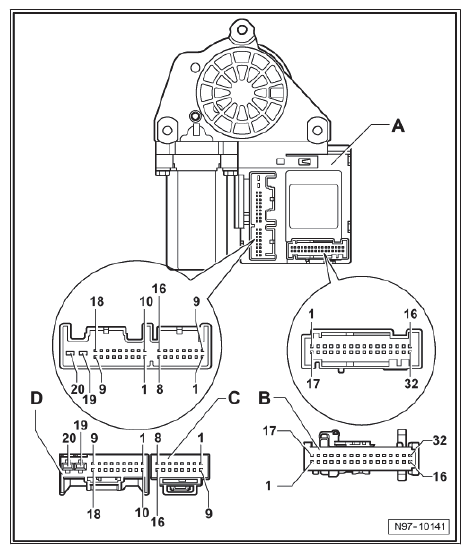

Fig 1: Front Passenger Door Control Module Connector End Views (J387, T32b, T16d, T20b)
G10375858
A Front Passenger Door Control Module -J387- Connector
B 32-Pin Connector -T32b- in wiring harness
C 16-Pin Connector -T16d- in wiring harness
D 20-Pin Connector -T20b- in wiring harness
