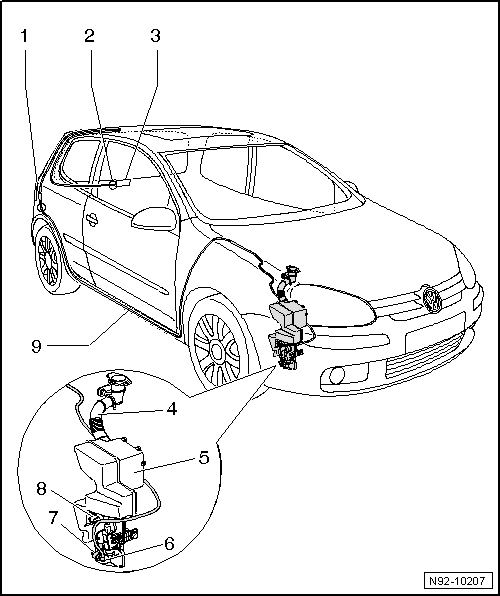

Rear Window Washer System Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2009 Volkswagen Rabbit, 2009 Volkswagen GTI, 2008 Volkswagen Rabbit, 2008 Volkswagen R32, and 2008 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Additional information:
Refer to the Owner's Manual.
- Connecting Piece
- Separating point between wiring harness of passenger compartment to wiring harness of rear lid.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Connecting Piece
- Connection to spray nozzle of rear window washer system.
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Spray Nozzle For Rear Window Washer System
- Replacing spray nozzle, refer to REAR WINDOW WASHER SPRAY NOZZLE .
- Adjusting spray nozzle, refer to REAR WINDOW WASHER SPRAY NOZZLE, ADJUSTING .
- Filler Tube For Tank For Windshield Washer System And Headlamp Cleaning System
- Removing and installing, refer to WINDSHIELD AND HEADLAMP WASHER FLUID RESERVOIR .
- Washer Fluid Reservoir
- Removing and installing WINDSHIELD AND HEADLAMP WASHER SYSTEM RESERVOIR .
- Angle Coupling
- Connection to Windshield and Rear Window Washer Pump -V59-
- Overview of washer fluid hose couplings, refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield and Rear Window Washer Pump -V59-
- Removing and installing, refer to WINDSHIELD AND REAR WINDOW WASHER PUMP -V59- .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing, refer to WINDSHIELD WASHER FLUID LEVEL SENSOR -G33- .
- Hose
- Hose repair. Refer to HOSES, REPAIRING .
