Ignition Components Overview

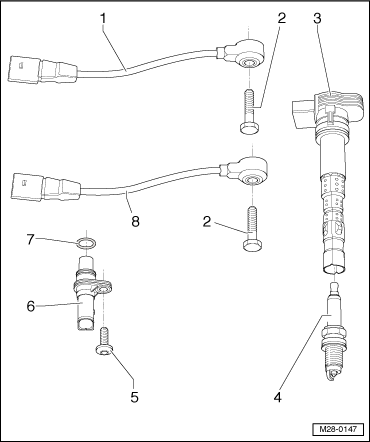

Fig 1: Identifying Ignition, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Knock Sensor (KS) 1 -G61-
- Contacts are gold plated.
Bolt, 20 Nm
- Tightening specification affects the function of the KS.
Ignition Coil with Power Output Stage -N70-, -N127-, -N291-, -N292-
- Removing and installing, refer to IGNITION COILS WITH POWER OUTPUT STAGES .
Spark Plug, 25 Nm
- Type and electrode gap, refer to TECHNICAL DATA .
- Remove and install using the spark plug removal tool 3122B.
Bolt, 10 Nm
Camshaft Position (CMP) Sensor -G40-
- Contacts are gold plated.
O-ring
- Replace if damaged.
Knock Sensor (KS) 2 -G66-
- Contacts are gold plated.
