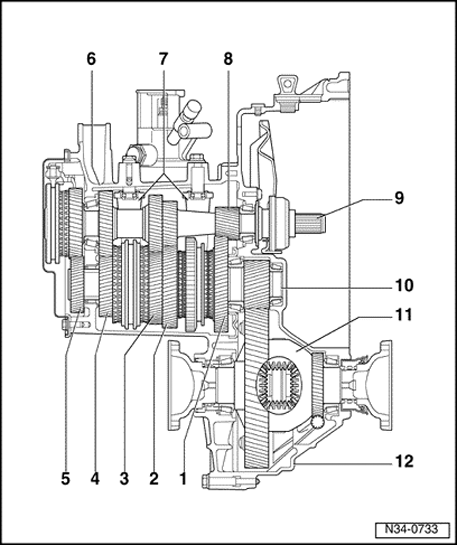

Transmission, disassembling and assembling: Overview

1 - 1st gear

2 - 2nd gear

3 - 3rd gear

4 - 4th gear

5 - 5th gear

6 - Transmission housing

• Servicing. Refer to Transmission housing and clutch housing, servicing

7 - Selector mechanism

• (Selector forks)
• Disassembling and assembling. Refer to Selector forks, disassembling and assembling

8 - Input gear for 1st and reverse gear

9 - Input shaft

• Disassembling and assembling. Refer to Input shaft, disassembling and assembling

10 - Output shaft

• Disassembling and assembling. Refer to Output shaft, disassembling and assembling

11 - Differential

• Disassembling and assembling. Refer to Differential, disassembling and assembling

12 - Clutch housing

• Servicing. Refer to Transmission housing and clutch housing, servicing
