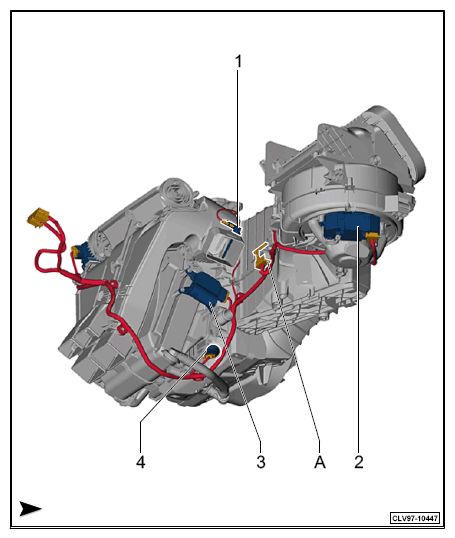

CLIMATRONIC, Part I

  1. 1  - Right footwell vent temperature sensor -G262-
  2. 2  - Fresh air blower control module -J126-
  3. 3  - Right temperature door motor -V159-
  4. 3  - Right temperature door potentiometer/actuator -G221-
  5. 4  - Evaporator temperature sensor -G308-
  6. A  - 10-pin connector
G12750437Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
