Sound System Overview

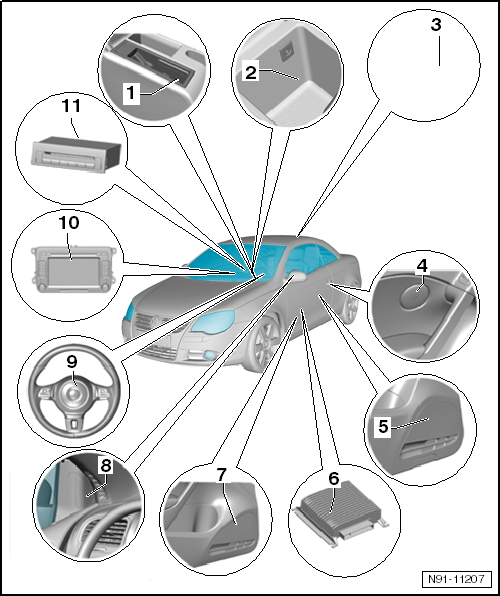

Fig 1: Identifying Sound System Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

External Multimedia Device Interface -R215-
- Located inside the center armrest storage compartment.
- Additional information, refer to EXTERNAL MULTIMEDIA DEVICE INTERFACE -R215- .
- Optional installation of CD changer or external multimedia device interface. The two systems cannot be installed together because the installation location is the same for both.
External Audio Source Connection -R199-
- Located inside the center armrest storage compartment.
- For more information regarding the external audio source connection, refer to EXTERNAL AUDIO SOURCE CONNECTION -R199- .
Telephone Antenna, Navigation and Auxiliary Heater Remote Control -R66-
- Installed in rear lid.
- Installed only if, in addition to the radio, a telephone or auxiliary heater is installed at the factory.
- For more information regarding the different antenna systems, refer to ANTENNA SYSTEMS .
Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed inside the left and right side trim panels in the passenger compartment.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed inside the left and right side trim panels in the passenger compartment.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
Amplifier -R12-
- Installed under the left front seat.
- For more information regarding the amplifier, refer to AMPLIFIER -R12- .
Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-
- Installed inside the left and right doors.
- Midrange frequencies play through the bass and treble speakers.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed inside the left and right doors.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
Left Multifunction Buttons On Steering Wheel -E440- and Right Multifunction Buttons On Steering Wheel -E441-
- For more information regarding the multifunction steering wheel, refer to MULTIFUNCTION STEERING WHEEL, UP TO 11.10 or MULTIFUNCTION STEERING WHEEL, FROM 11.10 .
Radio (RCD 510)
- Removing and installing, refer to RADIOS .
- Transport protection device of CD changer in RCD 510, activating/deactivating, refer to RCD 510 CD TRANSPORT PROTECTION, ACTIVATING/DEACTIVATING .
- Connector overview, refer to RADIO CONNECTORS OVERVIEW .
- Anti-theft coding, refer to RCD 510 ANTI-THEFT CODING, DEACTIVATING .
CD Changer -R41-
- 6 disc CD changer
- Located inside the center armrest storage compartment.
- For more information regarding the CD changer, refer to CD CHANGER .
- Optional installation of CD changer or external multimedia device interface. The two systems cannot be installed together because the installation location is the same for both.
