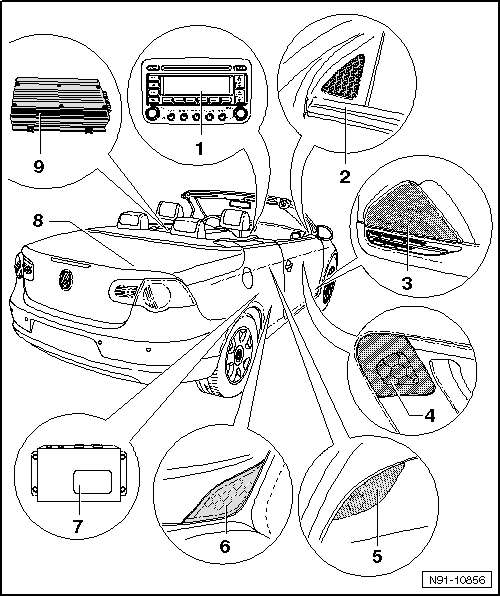

Sound System Overview
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Radio
- Premium 7 (Premium Sound System) radio with integrated 6-disc CD changer
- Removing and installing, refer to RADIOS .
- Right Front Treble Speaker -R22- and Left Front Treble Speaker -R20-
- Installed in triangle window of left and right front doors.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
- Right Front Bass Speaker -R23- and Left Front Bass Speaker -R21-, Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-
- Installed in door trim of left and right front doors.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
- Right Front Midrange Speaker -R104- and Left Front Midrange Speaker -R103-
- Installed in door trim of left and right front doors.
- Midrange speakers are installed only in conjunction with the sound system.
- Right Rear Treble Speaker -R16- and Left Rear Treble Speaker -R14-
- Installed in the left and right rear trim.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
- Right Rear Bass Speaker -R17- and Left Rear Bass Speaker -R15-
- Installed in the left and right rear trim.
- For more information regarding the different speaker systems, refer to SPEAKER SYSTEMS .
- Digital Satellite Radio Tuner -R190-
- Antenna Systems
- Installed in rear lid.
- For additional information, refer to ANTENNA SYSTEMS .
- Amplifier -R12- For Sound System
- Optional as additional equipment.
- Installed under the left front seat.
- For additional information, refer to AMPLIFIER -R12- .
