Battery System Overview

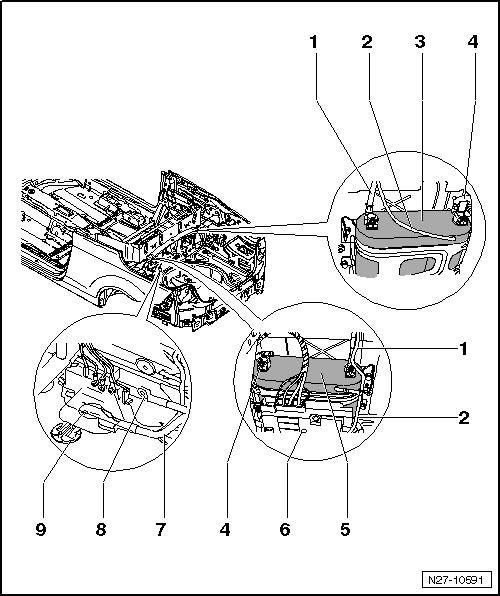

Fig 1: Identifying Battery System Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Battery Positive Wire
-- Disconnecting and connecting, refer to DISCONNECTING AND CONNECTING BATTERIES IN LUGGAGE COMPARTMENT .
Venting Line
- For information on this component, removing and installing, refer to BATTERY .
Right Starter Battery
-- Disconnecting and connecting, refer to DISCONNECTING AND CONNECTING BATTERIES IN LUGGAGE COMPARTMENT .

-- Removing and installing, refer to BATTERY .

NOTE:
Observe the rules for working with 6-volt batteries, refer to 6 VOLT BATTERY PRECAUTIONS .

6 Cylinder Gasoline, charging, refer to BATTERY, CHARGING .
Battery Ground Wire
-- Disconnecting and connecting, refer to DISCONNECTING AND CONNECTING BATTERIES IN LUGGAGE COMPARTMENT .
Left Starter Battery
-- Disconnecting and connecting, refer to DISCONNECTING AND CONNECTING BATTERIES IN LUGGAGE COMPARTMENT .

-- Removing and installing, refer to BATTERY .

NOTE:
Observe the rules for working with 6 volt batteries, refer to 6 VOLT BATTERY PRECAUTIONS .

6 Cylinder Gasoline, charging, refer to BATTERY, CHARGING .
Main Fuse Box With Battery Interrupt Igniter N253
-- For information on this component, refer to BATTERY INTERRUPT IGNITER -N253- .
Starter Wire (B+ wire)
-- For information on this component, refer to STARTER WIRE (B+ WIRE) .
Starter Wire Fastener To Battery Interrupt Igniter N253
-- For information on this component, refer to BATTERY INTERRUPT IGNITER -N253- .
Clip
- For securing wire grommet to body.
-- For information on this component, refer to STARTER WIRE (B+ WIRE) .
