Adaptive Cruise Control Overview

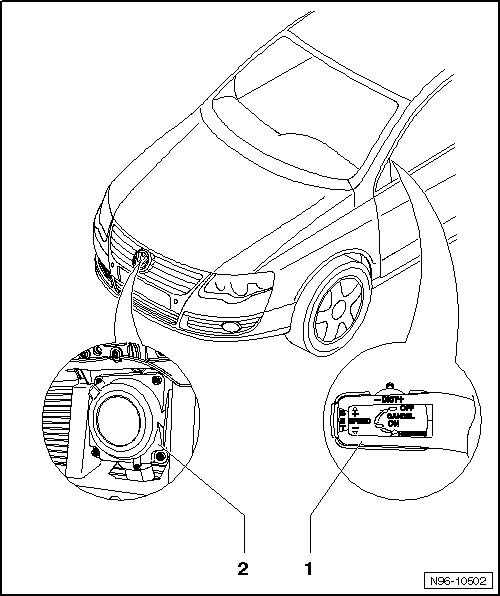

Fig 1: Locating Adaptive Cruise Control Button E357 And Distance Regulation Control Module J428

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Adaptive Cruise Control Button -E357-
The adaptive cruise control button is integrated in the cruise control switch on the steering column.

Cruise Control Switch on Steering Column, Removing and Installing, refer to ADAPTIVE CRUISE CONTROL BUTTON -E357- .
2 - Distance Regulation Control Module -J428-
Distance Regulation Control Module must not be disassembled further and contains the following components:
- Distance Regulation Control Module -J428-
- Adaptive Cruise Control Sensor -G550-
- Distance Regulation Sensor Heater -Z47-
Distance Regulation Control Module, removing and installing, refer to DISTANCE REGULATION CONTROL MODULE -J428- .
