Servicing Rupture/Hole

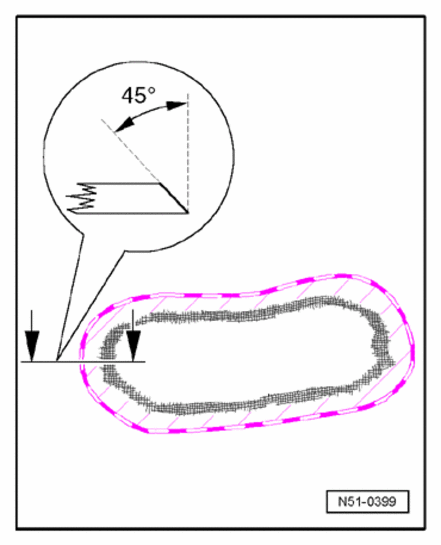

Fig 1: Identifying Grinding Area

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Identifying Sanding Area

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Sand area approximately 100 mm wide around rupture/hole -hatched area- using 150 grade emery cloth and clean with silicone remover.

Fig 3: Identifying Fiberglass Mats

Courtesy of VOLKSWAGEN UNITED STATES, INC.

-1- Overlap rupture/hole approximately 25 mm

-2- Overlap approximately 50 mm

-3- Overlap approximately 75 mm

NOTE:

For large ruptures/holes it is recommended to use a styrene block as a support. Cover styrene with commercially available unprinted PE synthetic foil so that contact with polyester resin is prevented. Then subsequently secure the prepared support to the inside of the rupture/hole with adhesive tape.
