Rear Window Assembly Overview, Sedan

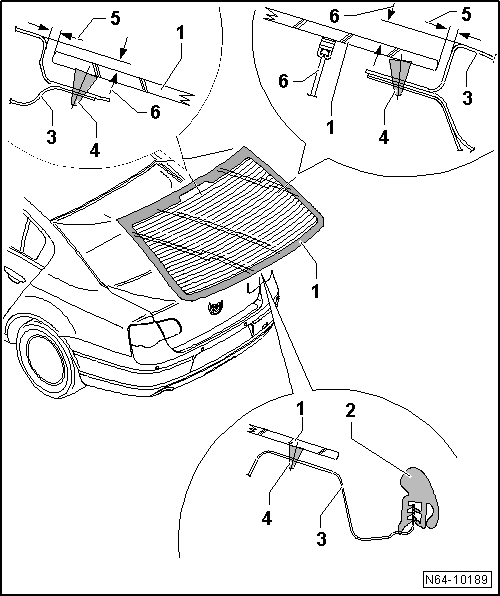

Fig 1: Rear Window, Sedan - Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rear window
- Rear Window, Removing, refer to UNDAMAGED REAR WINDOW, SEDAN
- Rear Window, Installing, refer to REAR WINDOW, SEDAN, INSTALLING
Seal
- For the rear lid
Body flange
PUR adhesive sealant
- Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time, refer to MINIMUM CURING TIME
Gap dimension
- Set a constant dimension at the top and sides of 2.5 mm using the adjustment gauge 3371
Height dimension at top and sides
- Top, from top surface of window to upper edge of roof
- Top: set a constant dimension of 3 mm using adjustment gauge 3371
- Side, from window edge to upper edge of side panel
- Side: set a constant dimension of 6.5 mm using adjustment gauge 3371
Contact for window heater
