Direct Shift Transmission, Transporting

Special tools and workshop equipment required

• Shackle 10-222 A/12
• Engine Sling 2024 A

A perforated rail of Transmission Support 3282 can be used to transport direct shift transmission as well as to align Engine Sling 2024 A with shackle 10-222 A /12.

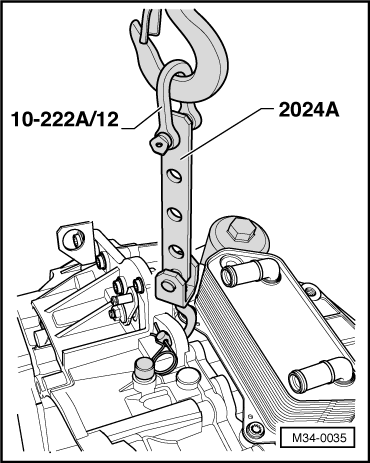

Fig 1: Identifying Shackle 10-222 A/12 & Engine Sling 2024 A

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift transmission using workshop crane via shackle 10-222 A/12 and Engine Sling 2024 A.

When transporting, pay attention to transmission oil cooler so that it is not damaged.
