Shift Mechanism

Lubricate bearing areas and slide surfaces with grease G 000 450 02.

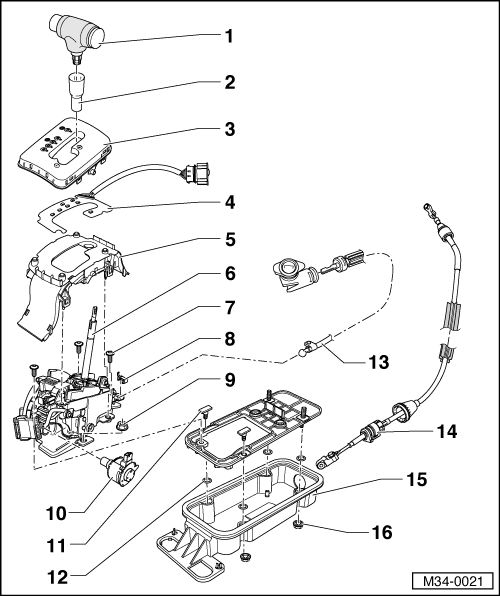

Fig 1: Identifying Shift Mechanism, Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Selector lever handle
   • Removing and installing SELECTOR LEVER HANDLE
2. Sleeve
   • Engages in selector lever handle
   • Locks removal of selector lever handle
3. Cover
   • With symbol insert
   • Removing and installing SELECTOR MECHANISM COVER AND CIRCUIT BOARD
4. Printed circuit board
   • Can be checked in "Guided Fault Finding" using VAS 5051/ VAS 5052
   • Removing and installing SELECTOR MECHANISM COVER AND CIRCUIT BOARD
5. Frame
   • With cover strips
   • Disassembling and assembling SELECTOR MECHANISM FRAME
6. Shift mechanism
   • Removing and installing SHIFT MECHANISM
   • With integrated Tiptronic Switch -F189- and Selector Lever Sensor System Control Module -J587-
7. Bolt, 6 Nm
   • 3x
8. Circlip
9. Nut
10. Shift Lock Solenoid -N110-
    • Removing and installing SHIFT LOCK SOLENOID
    • Can be checked in "Guided Fault Finding" using VAS 5051/ VAS 5052
11. Bolt
12. Seal
13. Locking cable
    • For ignition key removal lock
    • Must not be kinked
    • Removing and installing LOCKING CABLE
    • Adjusting LOCKING CABLE, ADJUSTING
    • Ignition key removal lock, checking function IGNITION KEY LOCK, CHECKING FUNCTION
14. Selector lever cable
    • Do not bend or kink
    • If protective sleeve is damaged, selector lever cable must be replaced
    • Checking and adjusting SELECTOR LEVER CABLE, CHECKING
    • Removing and installing SELECTOR LEVER CABLE
    • Do not grease cable eyelet and ball socket
15. Cover
    • For selector mechanism
    • With glued seal
16. Self-locking nut, 10 Nm
    • For cover at shift mechanism housing
    • 4x
    • Always replace
