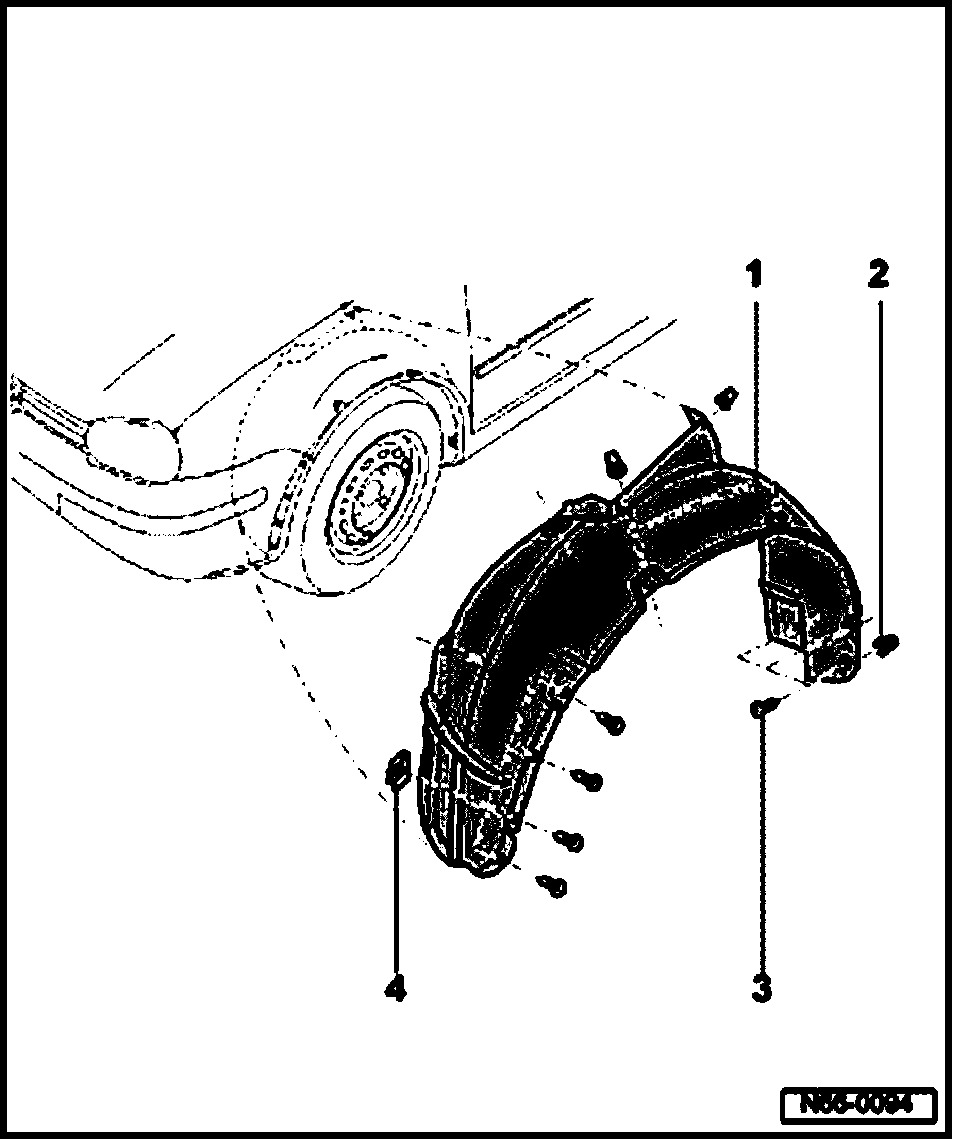

Front Wheelhousing Liner







1. Wheelhousing liner
- Material - PP/EPDM

- Removing
- Remove wheel. Tightening torque of wheel bolts = 120 Nm.
- Remove bolts (Qty. 12) and remove wheelhousing liner.

2. Expanding nut
3. Screw
4. Speed nut
- Connected to bumper cover
