Anti-Theft Coding, VOLKSWAGEN Radio Systems, Activating

WARNING: This page is about a different car, the 2010 Volkswagen Touareg, 2009 Volkswagen Touareg, and 2008 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

On the Delta sound system activate the code as follows:

-- Switch on the radio.

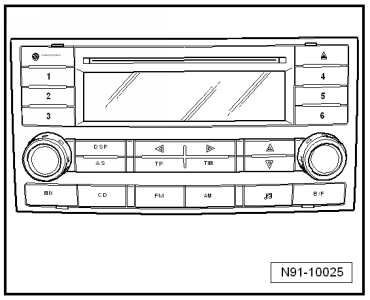

Fig 1: View Of Radio System Controls

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

"SAFE" appears in the digital display.

-- Engine the radio code using the radio station buttons 1 through 4.

-- Start with the first radio station button 1 and keep pressing it until the first number of the radio code appears in the display.

-- Repeat this for 2nd, 3rd and 4th numbers.

-- Once the four-digit radio code has been entered, press and hold the search button for longer than 2 seconds.

If the radio code was correctly entered, a radio frequency appears in the display.

The unit can now be used.

On "Sound System" radio system for USA and Canada vehicles, activate fixed code as follows:

Fig 2: Identifying "Sound System" Radio System For USA And Canada Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch on the radio.

The unit automatically displays "SAFE" and then "1000". It is not necessary to press any buttons.

-- Using the station preset buttons 1 through 4, enter the code number found on the radio card sticker. Button 1 adjusts the number in the first position, button 2 the second, etc.

-- Then press the arrow button that is located above the FAD button and hold it until the anti-theft coding is activated. This is indicated by a short signal tone.

If the code number has been entered correctly in the radio unit, a radio frequency appears in the display.

On "Premium Sound System" radio system for USA and Canada vehicles, activate fixed code as follows:

Fig 3: Identifying "Premium Sound System" Radio System For USA And Canada Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch on the radio.

The unit automatically displays "SAFE" and then "1000". It is not necessary to press any buttons.

-- Using the station preset buttons 1 through 4, enter the code number found on the radio card sticker. Button 1 adjusts the number in the first position, button 2 the second, etc.

-- Then press the station button that is located under the "OK" indicator in the display (normally, that is the last station button) and hold it until the anti-theft coding is activated. This is indicated by a short signal tone.

If the code number has been entered correctly in the radio unit, a radio frequency appears in the display.
