Steering Column CROSSMEMBER Assembly Overview

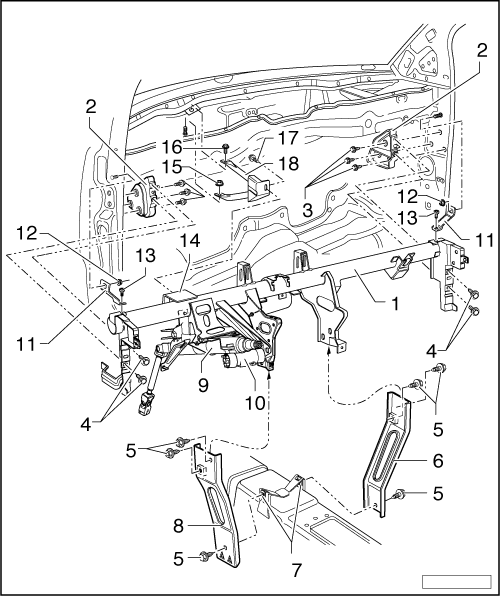

Fig 1: Cross Member For Steering Column, Assembly Overview (New Beetle Convertible)
GWWM48-0172Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Crossmember, for steering column
  2. Adjustment bracket
  3. Hex bolt
  4. Hex bolt
  5. Hex bolt
  6. Right brace
  7. Speed nut
  8. Left brace
  9. Steering column
  10. Steering lock housing
  11. Fitting bracket
  12. Hex nut
  13. Socket head bolt
  14. Bulkhead connection
  15. Hex nut
  16. Hex bolt
  17. Hex bolt
  18. Support
