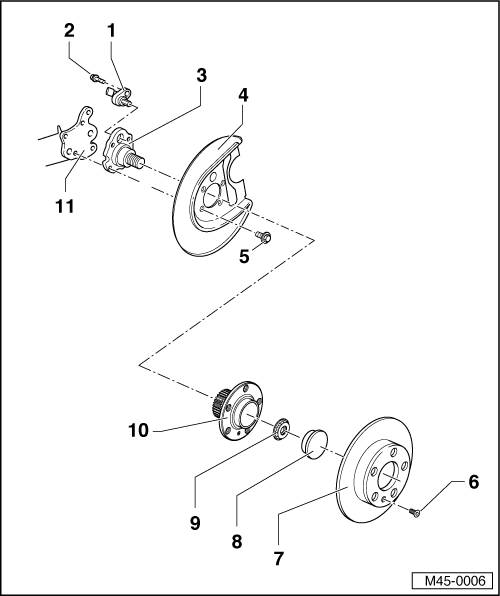

Rear Axle Abs Component Overview
- Right rear ABS wheel speed sensor -G44- /left rear ABS wheel speed sensor -G46-
- Before inserting sensor, clean inner surface of hole and coat with securing grease G 000 650
- Socket head bolt, 8 Nm
- Stub axle
- Cover plate
- Hex bolt, 60 Nm
- With dished washer
- Phillips-head screw
- Brake disc
- Cap
- Pressing off and driving in Removal and Installation
- Self-locking 12 point nut (175 Nm)
- Always replace after removal
- Wheel hub with wheel bearing and rotor
- Always replace after removal
- Replace only as complete unit
- Removing and installing Removal and Installation
- Axle beam
