Display Group 006



Break Down Of Display Content For Display Group Number 006


Display Group 006:

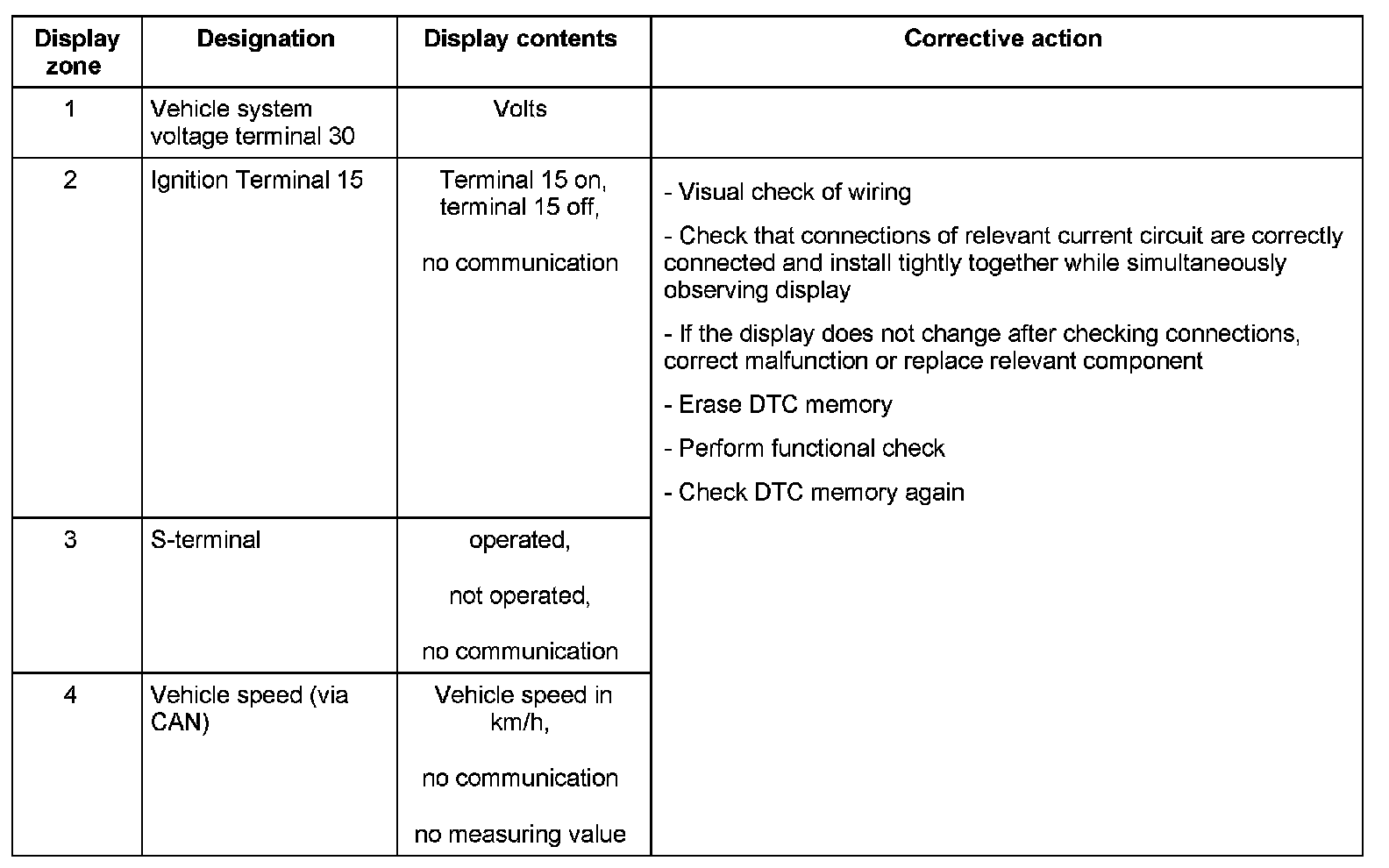

Evaluating display group number 006


Display Zone 1 - 4:
